In a manual transmission vehicle, the clutch disc (also called a clutch plate or friction disc) plays one of the most important roles in getting your car moving, changing gears smoothly, and making sure the engine’s power is transferred efficiently to the wheels. If you've ever wondered what a clutch disc is, how it functions, and why it’s so crucial to your car’s drivetrain, this article explains everything in clear, practical terms.

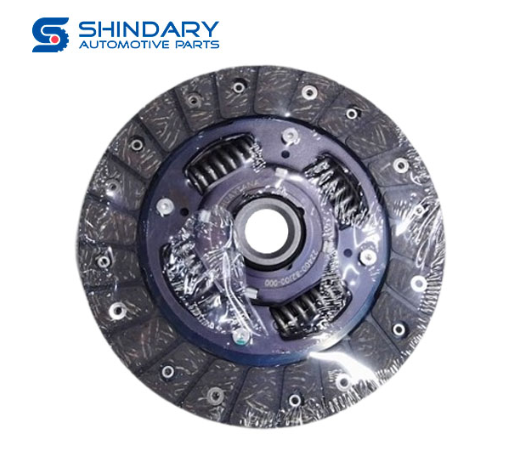

The clutch disc is a flat, circular component positioned between the flywheel and the pressure plate within a manual transmission clutch system. It is lined on both sides with friction material, very similar to brake pads, and is connected to the transmission's input shaft via splines in its center.
At its core, the clutch disc serves as the controlled link that connects and disconnects the engine's rotational power to the transmission. When the disc is pressed tightly against the flywheel, torque flows from the engine to the transmission. When it's released, the connection is broken, allowing you to shift gears or idle without stalling.
To understand how a clutch disc works, it’s helpful to see it as the bridge between the engine and the gearbox. The engine is constantly spinning whenever it’s running, but you don’t always want that energy going straight into the transmission, especially when starting from a stop or changing gears. The clutch disc allows for smooth control of this power transfer.
Here’s why the clutch disc matters:
1. Smooth Power Transfer
When the clutch disc is fully engaged (pressed between the flywheel and pressure plate), the friction materials grip the flywheel tightly. This torque transfer allows the car to accelerate under engine power.
2. Gear Changes Without Damage
To change gears, you must momentarily interrupt the power flow. Pressing the clutch pedal releases pressure on the clutch disc, allowing it to spin freely and the transmission to change gears without grinding.
3. Starting and Stopping Smoothly
From a dead stop, the clutch disc lets you gradually engage the drivetrain. This smooth engagement prevents stalling and reduces stress on other components.
The clutch disc is part of a clutch assembly that includes the flywheel, pressure plate, springs, and release mechanism. Here’s a step‑by‑step explanation of how it operates:
When the clutch pedal is not pressed, the pressure plate pushes the clutch disc firmly against the flywheel. Because of friction, the disc spins with the engine, transferring torque into the transmission’s input shaft.
When you press the clutch pedal, the release mechanism pushes against the pressure plate’s diaphragm spring. The pressure plate moves away from the clutch disc, reducing the clamping force. The disc is no longer tightly pressed against the flywheel, so it can spin independently. This interrupts power flow, allowing you to shift gears without damaging the gearbox.
As you release the clutch pedal, the pressure plate re‑applies force to the clutch disc, gradually increasing friction with the flywheel. The friction material on the disc allows this to happen smoothly so the drivetrain doesn’t jerk or stall.
Though it looks like a simple plate, the clutch disc has clever engineering built in:
The faces of the disc have a high‑friction lining. This material must resist heat and wear because every engagement involves friction and potential wear.
In the center of the disc is a splined hub that slides onto the transmission’s input shaft. This lets the disc spin with the shaft once engaged.
Many clutch discs incorporate small torsional springs near their center hub. These springs absorb shock and vibration during engagement, reducing drivetrain harshness and extending component life.
Because the clutch disc engages and disengages constantly, it’s subject to friction‑induced wear over time. Here are some common symptoms indicating it may need replacement:
· Slipping Clutch: Engine revs rise without a corresponding speed increase — the disc isn’t gripping well.
· Difficulty Shifting: Gear changes feel stiff or grinding noises occur — the disc isn’t fully disengaging.
· Burning Smell: Overheating friction material due to excessive slipping.
· Vibration or Chatter: Uneven engagement due to worn or contaminated friction surfaces.
To extend the life of your clutch disc:
· Avoid riding the clutch — resting your foot on the pedal while driving can cause premature wear.
· Use smooth, gradual engagement when starting the car.
· Don't hold the clutch in a partially engaged position longer than necessary.
The clutch disc is a deceptively simple yet fundamentally critical part of any manual transmission vehicle. It regulates the engine’s power to the transmission, enabling smooth starts, stops, and gear changes. Understanding what it is, how it works, and how to care for it not only helps you drive more effectively but also extends the life of your transmission components.
Whether you’re a driving enthusiast or simply want to understand what’s happening under the hood, appreciating the clutch disc’s role will give you a deeper insight into how cars operate.
