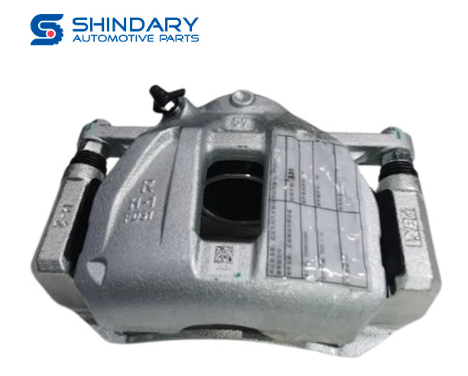

Brake calipers are a critical part of a vehicle’s braking system. They play an essential role in slowing down the wheels and bringing the vehicle to a safe stop.
Below, we explore the function, components, types, materials, and maintenance of brake calipers.
Brake calipers are one of the key components of a vehicle’s braking system. Their primary function is to slow or stop the vehicle by creating friction against the brake rotors. This process is essential for safe driving because it directly affects braking performance and stopping distance.
When the driver presses the brake pedal, brake fluid transfers hydraulic pressure to the caliper. The caliper then forces the brake pads against the rotating brake rotor, generating friction that slows down or stops the vehicle.
Brake calipers are made up of several important components, each contributing to the overall performance and reliability of the braking system.
Caliper and Mounting Bracket
The caliper houses the brake pads and pistons and is responsible for applying braking force to the rotor. The mounting bracket secures the caliper in position over the rotor and must withstand significant braking forces during operation.
Slide Pins
Slide pins are attached to either the caliper body or the anchor bracket. They allow the caliper to slide smoothly, enabling even pressure distribution when the brake pads clamp onto the rotor.
Locking Bolts
Locking bolts secure the caliper to the mounting bracket. Proper torque is essential to keep the caliper firmly in place during braking. Applying blue threadlocker to the bolts can help prevent loosening caused by road vibration over time.
Dust Boots
Dust boots protect the slide pins and caliper pistons from dirt, moisture, and debris. Keeping these components clean helps maintain smooth operation and extends service life.
Brake Mounting Clips
Brake mounting clips hold the brake pads securely inside the caliper. They help minimize vibration and noise while allowing the pads to move freely during braking and release.
Brake Pads and Shims
Brake pads are the friction materials that press against the rotor to slow the vehicle. Shims are installed behind the pads to reduce brake noise and promote even pad wear. High-quality pads and shims are essential for stable braking performance and noise reduction.
Brake Piston
The brake piston applies force to the brake pads when the brakes are engaged. It must move freely within the caliper cylinder to ensure proper braking function.
Bleeder Screw
The bleeder screw is designed to remove trapped air from the brake system during bleeding procedures. Maintaining an airtight hydraulic system is critical for effective braking performance. When loosened slightly, the bleeder screw allows brake fluid and air to flow through its internal channel and exit the system.
Each component plays a vital role in the overall function of the braking system. Regular inspection and maintenance—including lubrication, wear checks, and timely replacement of damaged parts—are necessary to ensure safe, reliable, and efficient braking performance.
There are primarily three types of brake calipers:
A floating caliper is designed to move slightly side-to-side relative to the rotor. It differs from a fixed caliper by having one or more pistons located only on one side of the rotor, allowing the caliper to move laterally. When the brakes are applied, hydraulic pressure from the brake fluid pushes the pistons outward, pressing the brake pad against one side of the rotor. This action also causes the caliper to slide or “float,” bringing the brake pad on the opposite side into contact with the rotor.
A fixed caliper differs from a floating caliper because it does not move relative to the brake rotor. Fixed calipers feature pistons on both sides of the rotor, and some designs include multiple pistons on each side. When the brakes are applied, hydraulic pressure pushes the pistons outward on both sides, forcing the brake pads against the rotor. This creates the friction needed to slow down or stop the vehicle.
Sliding calipers, also known as pin-slide calipers, are similar to floating calipers in that they typically have one or two pistons located on only one side of the rotor. The main feature of a sliding caliper is the use of guide pins or sliders, which allow the caliper to move slightly back and forth during braking.
