If you drive a vehicle with a manual transmission, you’ve likely already dealt with clutch replacement—or at least considered upgrading it. In most cases, original equipment manufacturer (OEM) clutches are built for durability and can often last between 50,000 and 60,000 miles or more under normal driving conditions. This is why many drivers only replace their clutch when they choose to upgrade to a performance-oriented aftermarket option.
Once you’ve carefully selected an aftermarket clutch that fits your vehicle and performance needs, you might assume the job is done—install it, break it in, and you’re ready to drive. However, that’s not entirely correct.
One critical but often overlooked component of the manual transmission system is the clutch pedal adjustment. While an OEM clutch may sometimes function properly without pedal adjustment (as long as free play remains within specification), aftermarket clutches almost always require recalibration of the clutch pedal.
Failing to properly adjust the clutch pedal can lead to serious mechanical issues. In extreme cases, incorrect pedal setup may cause constant pressure on the release mechanism, leading to premature wear or even failure of the throw-out bearing and related drivetrain components. Over time, this can escalate into severe engine or transmission damage—repairs that are far more costly than a simple adjustment.
Before understanding why clutch pedal adjustment is necessary after installing a new clutch, it’s important to first look at how the clutch pedal system actually operates.
Most modern vehicles with manual transmissions use a hydraulic clutch release system. In this setup, when you press the clutch pedal, your foot force is transferred to the master cylinder. Inside the master cylinder is a piston (plunger) connected directly to the pedal. As the pedal is pressed, this piston compresses hydraulic fluid (clutch oil) within the cylinder.
That pressurized fluid then flows through hydraulic lines to the slave cylinder. Inside the slave cylinder is another piston, which is pushed outward by the incoming fluid pressure. This movement is then transferred to the clutch fork, which activates the release (throw-out) bearing. The release bearing presses against the center of the diaphragm spring in the pressure plate, and at that moment, the clutch disengages—disconnecting engine power from the transmission.
In contrast, older or simpler manual transmission systems may use a mechanical clutch release system. Instead of hydraulic fluid, this design relies on a clutch cable. The cable is attached to the clutch pedal at one end and to the release fork at the other. When the pedal is pressed, the cable physically pulls the fork, which then moves the release bearing to disengage the clutch.
Both systems achieve the same result, but the hydraulic system offers smoother operation and more consistent pedal feel, which is why it is more commonly used in modern vehicles.

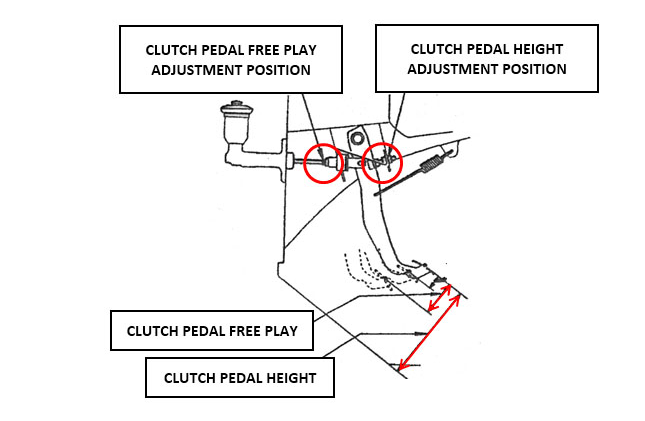

Before discussing clutch pedal adjustment in detail, it’s important to understand two key parameters that define how the pedal behaves: pedal height and pedal free play.
Pedal height refers to the position of the clutch pedal at rest relative to the vehicle floor. In other words, it is the vertical distance between the pedal’s resting position and the floorboard. This measurement directly affects how much total travel is available when you press the pedal to disengage the clutch. If components such as the master cylinder, release (throw-out) bearing, or the clutch assembly itself are replaced, the pedal height may need to be readjusted to ensure proper engagement and disengagement.
The second parameter is pedal free play. This is the initial amount of movement you can press the clutch pedal before any resistance is felt. In simpler terms, it is the “loose” portion of the pedal travel before the hydraulic or mechanical system begins to engage. During this phase, the clutch is still fully engaged and no force is being applied to the pressure plate.
Free play is critical because it acts as a safety buffer. Too little free play can cause constant pressure on the clutch release system, leading to premature wear. Too much free play, on the other hand, can make it difficult to fully disengage the clutch, resulting in rough shifting or gear grinding. Maintaining the correct balance ensures both smooth driving performance and long-term clutch durability.
Now that we understand how the clutch pedal works and the key parameters involved, the next question is why pedal adjustment becomes necessary after installing a new clutch. The answer largely comes down to changes in clutch geometry, friction material thickness, and pressure plate characteristics.
When your vehicle is equipped with an OEM clutch, the entire system—pedal height, free play, hydraulic travel, and clutch engagement point—is precisely calibrated by the manufacturer to work as a unified system.
However, once you install a new clutch, especially an aftermarket performance unit, several critical dimensions change. These may include the overall clutch assembly height, the thickness of the friction disc, and the clamping force of the pressure plate. In many cases, aftermarket clutches are designed to be more robust, with increased clamping pressure and different engagement characteristics compared to stock components.
If the clutch pedal is not adjusted after installation, the system continues to operate based on the original factory calibration. This means that when you press the pedal, the master cylinder stroke and release fork travel remain unchanged. However, because the new pressure plate may require a different release distance due to higher clamping force, the fork may not move far enough to fully disengage the clutch. This incomplete disengagement can lead to clutch slippage, where the friction disc fails to fully separate from the flywheel under load. Over time, this generates excessive heat, accelerates wear of the friction material, and can also overload the release (throw-out) bearing, potentially leading to premature failure.
Changes in clutch thickness also affect engagement behavior. A thicker friction disc typically causes the clutch to “bite” sooner as the pedal is released. While this can improve responsiveness in some performance setups, it can also make engagement feel abrupt or less smooth, especially for everyday driving.
Pedal free play is another critical factor affected by clutch replacement. Ideally, free play ensures that the clutch only begins to disengage after a small, intentional amount of pedal movement. When a new clutch is installed, changes in system dimensions can reduce or increase this free play. If free play becomes too small, the clutch may remain partially disengaged even when your foot is off the pedal. This reduces full clamping force between the pressure plate and flywheel, increasing the risk of continuous slip.
Additionally, insufficient free play can prevent the hydraulic system from fully returning to its resting position. This means the master cylinder piston may not fully retract, especially under heat expansion or when a driver rests their foot lightly on the pedal. Over time, this condition can accelerate wear on the release bearing, clutch fork, and pivot points, and may even contribute to hydraulic leaks in the master or slave cylinder.
On the other hand, excessive free play introduces its own issues. It can delay clutch disengagement, causing incomplete separation of the drivetrain. This often results in gear drag, difficulty shifting, or slight vehicle creep during gear changes—particularly noticeable in stop-and-go traffic.
Ultimately, achieving the correct balance of pedal height and free play is essential not only for smooth shifting but also for protecting the entire clutch and transmission system from premature wear.
Most modern manual transmission vehicles use a hydraulic clutch release system, and some newer models even include limited self-adjusting mechanisms within the clutch or pedal assembly. Because of this, many drivers assume that all hydraulic clutch systems automatically compensate for wear or component changes—but this is a common misconception.
While hydraulic systems can self-adjust for minor wear over time, they are not designed to fully compensate for major changes in clutch geometry or component replacement. In reality, even systems labeled as “self-adjusting” often only work within a narrow range and may still require manual verification or fine-tuning to operate correctly.
This becomes especially important after a clutch replacement. Installing a new clutch changes key parameters such as friction disc thickness, pressure plate height, and overall engagement point. Even when replacing an OEM clutch, the new disc may be slightly thicker than the worn unit it replaces, which can shift the clutch engagement behavior. With aftermarket performance clutches, these differences are often even more significant due to variations in design, clamping force, and material specifications.
As a result, relying solely on a hydraulic or self-adjusting system can lead to incorrect pedal positioning, improper free play, or inconsistent clutch engagement. These issues may not be immediately obvious but can gradually affect drivability and increase wear on components such as the release bearing and pressure plate.
In conclusion, a hydraulic clutch system does not eliminate the need for adjustment. After installing a new clutch—whether OEM or aftermarket—it is still necessary to verify and adjust the clutch pedal setup. Proper adjustment ensures correct engagement point, sufficient free play, and full release of the clutch, all of which are essential for smooth operation and long-term system durability.
